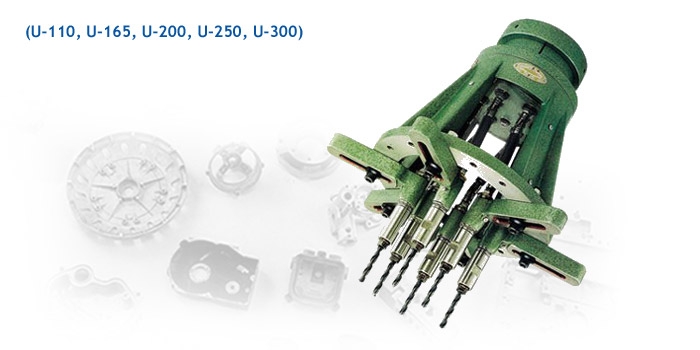

U-Type, Round-Shape Models
- It is a universal adjustable multi-spindle head. The regular spindles from 4-14 spindles. Depend on customer’s requirment. Special requirement is acceptable.
- It is suitable to work for lineral materials.
- The universal joint design, it is very easy to adjust each spindle.
Type | Collet | R.P.M | Drilling Capacity | Lowest Distance | Range of Center | Spindle |
---|---|---|---|---|---|---|
U-110 | C-5/ ER8 | 1:1 (Small distance) |
5.0 | 13 | 110 | 2-6 |
U-110 | C-6/ C-9/ ER11 | 1:1 | 6.0/ 8.0/ 7.0 | 18/ 26/ 20 | 110 | 2-6 |
U-165 | C-6/ C-9/ ER11 | 1:1 | 6.0/ 8.0/ 7.0 | 18/ 26/ 20 | 165 | 3.4.5.6.8.10 |
U-165 | C-5/ ER8/ C-12/ ER16 | (Small distance) 1:1 (Powerful) |
5.0/ 5.0/ 11/ 10 | 13/ 13/ 28/ 30 | 165 | 3.4.5.6.8.10 |
U-200 | C-6/ C-9/ ER11 | 1:1 | 6.0/ 8.0/ 7.0 | 18/ 30/ 20 | 200 | 4.5.6.8.10 |
U-200 | C-5/ ER8/ C-12/ ER16 | (Small distance) 1:1 (Powerful) |
5.0/ 5.0/ 11/ 10 | 13/ 13/ 30/ 30 | 200 | 4.5.6.8.10 |
U-250 | C-6/ C-9/ ER11 | 1:1 | 6.0/ 8.0/ 7.0 | 18/ 30/ 20 | 250 | 4.5.6.8.10 |
U-250 | C-5/ ER8/ C-12/ ER16 | (Small distance) 1:1 (Powerful) |
5.0/ 5.0/ 11/ 10 | 13/ 13/ 30/ 30 | 250 | 4.5.6.8.10 |
U-300 | C-6/ C-9/ ER11 | 1:1 | 6.0/ 8.0/ 7.0 | 18/ 30/ 20 | 300 | 4.5.6.8.10 |
U-300 | C-5/ ER8/ C-12/ ER16 | (Small distance) 1:1 (Powerful) |
5.0/ 5.0/ 11/ 10 | 13/ 30/ 30 | 300 | 4.5.6.8.10 |
